MIT Researchers Develop Breakthrough Silicon Photonics Chip to Create Smaller More Durable Lidar Sensors with Enhanced Fields of View

The evolution of autonomous navigation has long been tethered to the development of sophisticated sensing technologies, with Light Detection and Ranging, or lidar, standing at the forefront of this revolution. Lidar systems function as the "eyes" of self-driving vehicles, utilizing rapid pulses of infrared light to calculate distances and generate high-resolution 3D maps of a vehicle’s surroundings. Despite their critical importance, the widespread adoption of lidar has been hampered by significant physical and economic barriers. Traditional lidar units are often bulky, expensive, and reliant on complex mechanical components that are prone to wear and tear. However, a recent breakthrough from a research team at the Massachusetts Institute of Technology (MIT) promises to dismantle these hurdles by introducing a new silicon-photonics-based chip that enables smaller, more durable, and highly efficient lidar sensors without the need for moving parts.

The core of this innovation, recently published in the journal Nature Communications, addresses a fundamental engineering trade-off that has plagued integrated lidar systems for years. By utilizing an innovative array of integrated antennas with varying geometries, the MIT team has successfully expanded the field of view of chip-scale lidar while simultaneously reducing the noise and interference that typically degrade measurement accuracy. This advancement could pave the way for the mass production of low-cost, high-performance lidar sensors suitable for everything from autonomous cars and drones to industrial robotics and construction site monitoring.

The Mechanics and Limitations of Conventional Lidar

To understand the significance of the MIT breakthrough, one must first examine the mechanics of traditional lidar. Standard systems typically employ a large, rotating assembly—often visible as a spinning "bucket" on the roof of autonomous test vehicles. This unit houses lasers and mirrors that physically sweep across a 360-degree environment. While effective, these mechanical systems are inherently fragile. The constant motion leads to mechanical fatigue, making them less reliable for long-term use in harsh environments. Furthermore, the precision required to manufacture these rotating units drives costs into the thousands of dollars per sensor, a price point that is prohibitive for mass-market consumer vehicles.

In response to these challenges, the industry has looked toward solid-state lidar, which eliminates moving parts by using semiconductors to steer light electronically. The most promising avenue for this is silicon photonics, a technology that integrates optical components onto standard silicon chips. Instead of rotating a laser, these chips use an Integrated Optical Phased Array (OPA) to scan a beam of light across a scene. An OPA consists of a series of microscopic antennas that release light based on the phase of the input signal. By meticulously controlling these phases, researchers can steer the outgoing light beam in different directions.

The Problem of Crosstalk and Grating Lobes

While silicon-photonics-based lidar offers a path to miniaturization and durability, it has historically faced a major technical obstacle: the "antenna spacing problem." To achieve a wide field of view—essential for a vehicle to see objects at its periphery—the antennas on the chip must be placed extremely close together. However, when antennas are packed densely, they suffer from "crosstalk." This occurs when the light from one antenna leaks into its neighbor, scrambling the signal and creating significant optical noise.

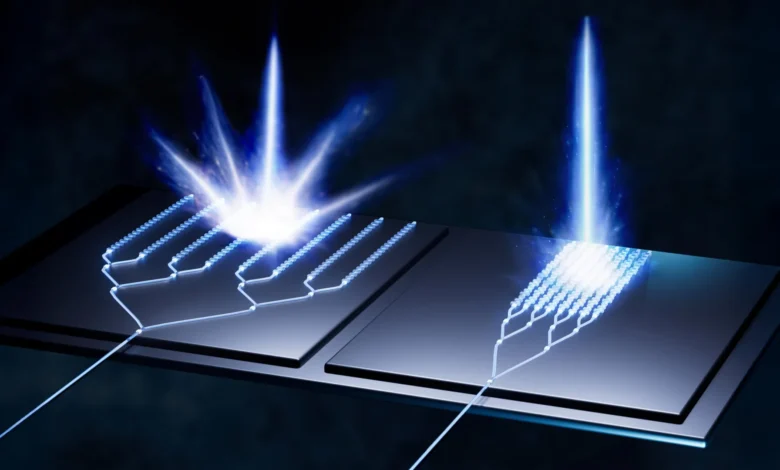

To avoid this interference, engineers have traditionally increased the distance between the antennas. While this reduces crosstalk, it introduces a new set of complications known as "grating lobes." When antennas are spaced too far apart, the array produces multiple copies of the same beam at different angles. These secondary beams, or "ghost" signals, consume energy and confuse the sensor, making it difficult for an autonomous system to distinguish between a real object directly ahead and a false detection at an angle. This physical limitation has confined most integrated lidar systems to a very narrow field of view, significantly limiting their utility in real-world navigation.

A Novel Solution: Geometric Diversity in Antenna Design

The MIT research team, led by Jelena Notaros, the Robert J. Shillman Career Development Associate Professor of Electrical Engineering and Computer Science (EECS), devised an elegant solution to this long-standing dilemma. Rather than using identical antennas across the array—the standard practice in OPA design—the team developed a repeating pattern of three antennas with distinct physical shapes.

The researchers manipulated the width of the antennas and the specific placement of "corrugations"—tiny, regularly spaced variations along the length of the antenna that cause light to scatter upward and out of the chip. Because each of the three antennas has a different geometry, they each possess a unique "propagation coefficient." This is a physical property that dictates how light waves move through a structure.

"Because the antennas have very different propagation coefficients, when we put them close together, essentially each antenna doesn’t ‘see’ the antenna next to it," explained Andres Garcia Coleto, an EECS graduate student and co-author of the study. "Therefore, it won’t couple with its neighbor."

By making the antennas electromagnetically "invisible" to one another, the team was able to place them in close proximity without the devastating effects of crosstalk. However, this introduced a secondary challenge: despite their different shapes, the antennas still had to behave identically in terms of their output. They needed to emit the same amount of light, at the same angle, and respond uniformly as the beam was steered across the scene.

Engineering Consistency from Complexity

The team utilized a rigorous theoretical framework to balance these conflicting requirements. They developed a new electromagnetic theory describing how radiative modes couple within an OPA and used computer simulations to refine the antenna designs. The goal was to ensure that while the internal propagation of light differed across the three antenna types, the external emission characteristics remained perfectly synchronized.

The lead author of the paper, EECS graduate student Henry Crawford-Eng, noted the difficulty of this task: "Typically, when antennas are designed with different geometries, they tend to behave differently. Engineering them to have the same emission characteristics while maintaining different internal geometries is extremely difficult."

After finalizing the designs, the team manufactured the chips using the MIT.nano facilities. The resulting OPA featured antennas placed with unprecedented density. When tested experimentally, the results were transformative. In a standard OPA configuration with such tight spacing, the coupling—or interference—between antennas would have been near 100 percent. The MIT design reduced this coupling to a mere 1 percent. This reduction allowed the chip to produce a single, clean, and high-quality light beam that could be steered over a wide field of view without the interference of grating lobes.

Reactions and Industry Implications

The implications of this research are far-reaching. By solving the dual problem of field-of-view and signal noise, the MIT team has moved solid-state lidar closer to commercial viability.

Joyce Poon, a professor of electrical and computer engineering at the University of Toronto and director of the Max Planck Institute of Microstructure Physics, who was not involved in the research, lauded the achievement. "This work addresses a longstanding challenge in integrated optical phased arrays," Poon stated. "The authors solve this problem with an elegant antenna design. Their innovation is an important step forward for chip-scale, solid-state beam-steering technology."

For the automotive industry, this could mean the transition from expensive, roof-mounted mechanical units to discreet, inexpensive sensors embedded in the bumpers or headlights of a car. Beyond transportation, the technology has immediate applications in:

• Aerial Mapping: Drones could be equipped with lightweight, high-resolution lidar for geological surveys or infrastructure inspection.
• Construction and Industrial Safety: Small, durable sensors could monitor construction sites in real-time, detecting hazards and tracking the progress of autonomous machinery.
• Consumer Electronics: The miniaturization of lidar could eventually lead to its integration into smartphones or wearable AR/VR devices, enhancing depth-sensing capabilities for augmented reality.

Future Research and Development

While the current results represent a major milestone, the MIT team is already looking toward the next phase of development. They intend to further refine the antenna designs to cover an even broader angular range, potentially reaching the 360-degree coverage currently only possible with rotating mechanical systems. Additionally, the researchers are exploring alternative approaches to wide-field-of-view performance that were uncovered during their theoretical modeling.

The research was a collaborative effort involving several members of MIT’s Research Laboratory of Electronics, including graduate students Benjamin M. Mazur, Daniel M. DeSantis, and Tal Sneh. The project received support from a diverse array of organizations, including the Semiconductor Research Corporation, the National Science Foundation, the MIT MathWorks Fellowship, and the U.S. Department of Defense.

As the demand for autonomous systems continues to grow, the ability to produce reliable, compact, and affordable sensors will be the deciding factor in how quickly these technologies are integrated into daily life. By reimagining the fundamental architecture of the silicon-photonics chip, the MIT team has provided a blueprint for the next generation of machine vision, ensuring that the future of autonomy is not only more capable but also more resilient and accessible.
