MIT Researchers Develop Breakthrough Silicon-Photonics Lidar Chip with Wide Field of View and No Moving Parts
In a significant leap forward for autonomous navigation and optical sensing, researchers at the Massachusetts Institute of Technology (MIT) have unveiled a new silicon-photonics lidar chip designed to overcome the long-standing trade-offs between sensor size, durability, and field of view. By utilizing a sophisticated array of integrated antennas with varying geometries, the team has successfully demonstrated a solid-state beam-steering system that eliminates the need for bulky mechanical components while maintaining high-resolution performance. This innovation, recently published in the journal Nature Communications, addresses a fundamental bottleneck in the commercialization of lidar technology for self-driving vehicles, robotics, and industrial automation.
Lidar, an acronym for Light Detection and Ranging, has emerged as a cornerstone of modern spatial perception. The technology functions by emitting rapid pulses of infrared light and measuring the time it takes for those pulses to reflect off objects and return to the sensor. By processing millions of these signals per second, lidar systems generate high-fidelity 3D "point clouds" that allow machines to navigate complex environments with precision. However, the first generation of lidar sensors—often seen as large, spinning "buckets" on the roofs of autonomous test vehicles—relied on complex mechanical assemblies. These units are not only expensive, often costing thousands of dollars per sensor, but are also prone to mechanical failure due to the constant wear and tear of moving parts.
The move toward solid-state lidar is viewed by industry experts as the "holy grail" of automotive sensing. By moving the light-steering functionality onto a semiconductor chip, manufacturers can theoretically produce sensors that are smaller, more rugged, and significantly cheaper through mass-production techniques similar to those used for computer processors. The MIT research team, led by Jelena Notaros, the Robert J. Shillman Career Development Associate Professor of Electrical Engineering and Computer Science (EECS), has focused on a specific type of solid-state technology known as an integrated optical phased array (OPA).
The Challenge of Optical Phased Arrays
An optical phased array works by controlling the phase of light as it passes through a series of tiny antennas on a chip. By precisely adjusting these phases, the system can steer a beam of light across a scene without moving any physical components. This is analogous to how phased-array radar systems work in military and aviation applications, but translated to the much smaller wavelengths of infrared light.

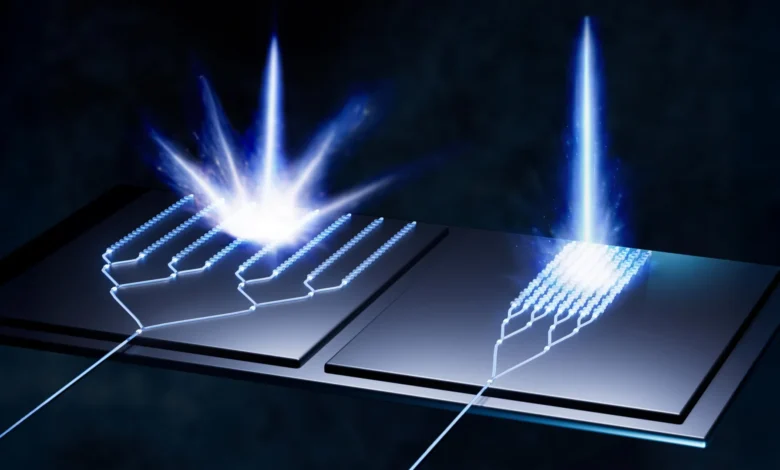

Despite their potential, OPAs have historically struggled with a restrictive field of view. To achieve a wide scanning range, the antennas within the array must be placed very close together—ideally at a distance roughly half the wavelength of the light being used. When antennas are spaced too far apart, the system generates "grating lobes," which are essentially ghost images or secondary beams that move in different directions than the primary beam. These lobes confuse the sensor, lead to false detections, and waste energy, making the lidar system unreliable for high-stakes environments like busy city intersections.
However, placing antennas close together introduces a new problem: crosstalk. When antennas are packed tightly on a silicon-photonics chip, the light traveling through one antenna tends to leak into its neighbor. This electromagnetic coupling scrambles the signals, degrading the quality of the light beam and rendering the system ineffective. For years, the photonics community has been caught in a catch-22, forced to choose between a wide field of view with high noise or a narrow field of view with clean signals.
A Geometric Solution to Electromagnetic Interference
The MIT team, including lead author and EECS graduate student Henry Crawford-Eng and fellow graduate student Andres Garcia Coleto, found a way to break this stalemate through a novel design of the antennas themselves. In a traditional OPA, every antenna is identical. Because they share the same physical structure, they "resonate" at the same frequency, allowing energy to transfer easily between them—much like how a vibrating tuning fork can cause an identical tuning fork nearby to start humming.
The researchers realized that if they could make neighboring antennas "invisible" to one another, they could pack them together without the penalty of crosstalk. To achieve this, they developed a repeating pattern of three distinct antenna shapes. Each of the three antennas features a different width and a unique pattern of "corrugations"—tiny notches along the length of the antenna that cause light to scatter upward.
Because each antenna has a different geometry, it possesses a different propagation coefficient. In the world of electromagnetics, this means the light moves through each antenna at a slightly different speed or "mode." When these mismatched antennas are placed side-by-side, the energy from one cannot easily couple into the next because their physical properties are out of sync.
"Because the antennas have very different propagation coefficients, when we put them close together, essentially each antenna doesn’t ‘see’ the antenna next to it," explains Garcia Coleto. This allowed the team to place the antennas at the high-density spacing required for a wide field of view while reducing interference to unprecedented levels. In their experimental testing, the researchers found that while a traditional OPA design would have resulted in nearly 100 percent coupling (complete interference), their new design reduced that figure to a mere 1 percent.
Engineering Consistency Across Diversity
While making the antennas different solved the crosstalk problem, it introduced a secondary engineering hurdle. For a lidar system to work, the entire array must still act as a unified whole. Even though the antennas have different shapes, they must all emit the same amount of light at exactly the same angle when prompted.
"We have this challenge where we require the antennas to have different geometries to reduce the crosstalk, but we need to simultaneously design the antennas to have the same emission characteristics," says Crawford-Eng. Achieving this required the development of a new theoretical framework. The team used complex computer simulations and electromagnetic modeling to fine-tune the corrugations and widths of each antenna type.
The result is a chip that behaves with remarkable uniformity. When the system steers its beam, all antennas contribute equally to a single, high-quality point of light that can be swept across a broad horizontal range. This eliminates the "aliasing" or ghosting effects that have plagued previous attempts at wide-angle silicon-photonics lidar.
Broader Impact and Industry Implications
The implications of this research extend far beyond the automotive sector. While autonomous vehicles are the most visible application, the ability to produce high-performance, miniature lidar sensors could revolutionize several fields:
- Aerial Mapping and Drones: Small, lightweight lidar sensors are essential for drones used in topographical mapping, forestry management, and infrastructure inspection. Current high-end drone lidar units can be heavy and drain battery life; a chip-scale solution would increase flight times and accessibility.
- Robotics and Logistics: In automated warehouses, robots need to navigate around human workers and shifting inventory. Affordable, durable lidar would allow for the deployment of larger fleets of robots in more dynamic environments.
- Construction and Safety: Lidar can be used to monitor construction sites in real-time, ensuring that structures are being built to specification and detecting potential safety hazards.
- Consumer Electronics: As lidar technology continues to shrink, it may eventually find its way into a wider array of consumer devices, enhancing augmented reality (AR) experiences on smartphones and wearable glasses.
Industry experts have reacted positively to the MIT findings. Joyce Poon, a professor at the University of Toronto and director of the Max Planck Institute of Microstructure Physics, noted that the work addresses a "longstanding challenge" in the field. "Their innovation is an important step forward for chip-scale, solid-state beam-steering technology," she said, highlighting the elegance of solving a physics problem through geometric design.
Chronology and Future Research
The development of this technology is the result of years of interdisciplinary research at MIT’s Research Laboratory of Electronics (RLE) and the EECS department. The work was supported by several prestigious organizations, including the Semiconductor Research Corporation, the National Science Foundation, and the U.S. Department of War, among others. Some of the fabrication and testing were conducted at MIT.nano, the university’s state-of-the-art facility for nanoscale research.
Moving forward, the Notaros Group plans to push the boundaries of this technology even further. Current goals include expanding the vertical field of view and increasing the total number of antennas in the array to enhance the resolution of the 3D maps. They are also exploring alternative materials and wavelengths that could further improve the range and eye-safety of the sensors.
The transition from a laboratory breakthrough to a commercial product involves several steps, including rigorous testing in varying weather conditions and integration with existing vehicle software stacks. However, by solving the fundamental physics of antenna interference on a chip, the MIT team has cleared one of the most significant technical hurdles standing in the way of the next generation of autonomous "eyes."
As the automotive industry pivots toward Level 4 and Level 5 autonomy—where vehicles can operate without human intervention—the demand for reliable, low-cost sensors will only intensify. The MIT silicon-photonics chip represents a pivotal shift toward a future where lidar is not a bulky, fragile luxury, but a ubiquitous and invisible component of the modern world’s infrastructure. The research serves as a testament to how fundamental electromagnetic theory, when applied through innovative engineering, can solve practical problems that have stymied the tech industry for a decade.
