MIT Researchers Develop Breakthrough Silicon-Photonics Chip to Overcome Core Limitations in Solid-State Lidar Technology

The evolution of autonomous systems, robotics, and spatial mapping has long been bottlenecked by the physical constraints of light detection and ranging (lidar) technology. Conventional lidar units, which rely on mechanical spinning assemblies to project infrared laser pulses and map surroundings in three dimensions, are inherently bulky, expensive, and susceptible to mechanical wear over time. These physical vulnerabilities have restricted the deployment of high-resolution lidar in mass-market applications. Addressing this decades-long engineering hurdle, a team of researchers at the Massachusetts Institute of Technology (MIT) has successfully engineered a novel silicon-photonics chip that operates entirely without moving parts while dramatically expanding the field of view and minimizing optical interference.

The breakthrough, detailed recently in the journal Nature Communications, centers on an advanced integrated optical phased array (OPA). By utilizing semiconductor manufacturing techniques to manipulate light via silicon channels rather than traditional electrical signals, the MIT research team has effectively demonstrated a solid-state beam-steering architecture capable of bypassing the traditional trade-offs that have plagued micro-optical systems. This development promises to accelerate the commercialization of compact, durable, and cost-effective lidar sensors suitable for autonomous vehicle navigation, aerial topography, and industrial automation.

The Engineering Challenge of Integrated Optics

To understand the magnitude of the MIT team’s achievement, it is necessary to examine the underlying physics of modern integrated optics. Traditional mechanical lidar systems use motors to rotate mirrors or entire transceiver assemblies, physically sweeping laser beams across a 360-degree environment. While effective at generating high-density point clouds, these mechanical systems represent a persistent reliability risk. Vibrations, thermal expansion, and mechanical fatigue can misalign optics, leading to sensor degradation or catastrophic failure in harsh operational environments such as heavy machinery or high-speed vehicular transit.

In contrast, solid-state lidar systems built on silicon-photonics chips eliminate moving parts entirely. Instead of physically turning a component, these chips steer a laser beam electronically by manipulating the phase of light emitted from an array of microscopic antennas. Each antenna features tiny, regularly spaced surface variations known as corrugations, which scatter input light upward and out of the photonic substrate. By altering the phase of the optical signal fed into each individual antenna, engineers can dynamically change the constructive and destructive interference patterns of the emitted light waves, thereby steering the primary beam to different angles without mechanical intervention.

However, this electronic steering method introduced a severe geometric dilemma that has frustrated optical engineers for years. To achieve a wide field of view—essential for autonomous vehicles to detect pedestrians or obstacles approaching from peripheral angles—the antennas within the array must be packed closely together. Yet, placing conventional identical antennas in close proximity triggers severe optical crosstalk. Neighboring waveguides couple with one another, scattering and scrambling the light output, which severely degrades beam quality and generates substantial background noise.

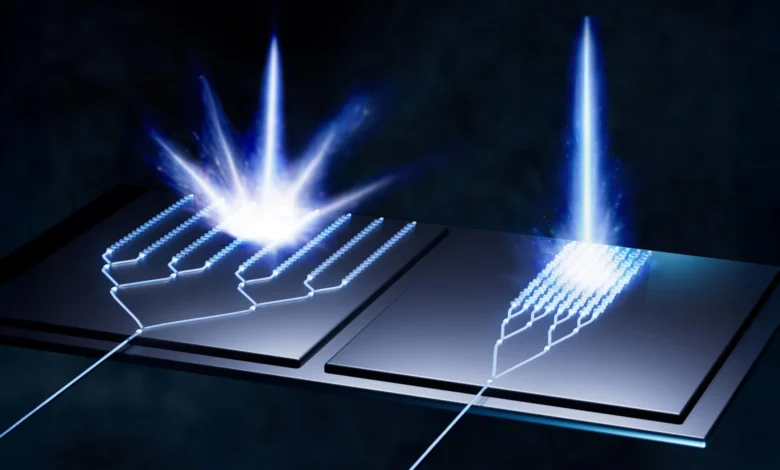

Conversely, when engineers attempt to mitigate this crosstalk by increasing the physical distance between antennas, a different optical phenomenon emerges: grating lobes. Spacing antennas too far apart causes the array to project multiple, duplicate copies of the primary beam at unintended angles. These parasitic beams not only siphon optical energy away from the primary scanning beam, reducing overall sensor range and efficiency, but they also confuse the receiving sensor algorithms with false-positive spatial detections. For an autonomous vehicle, the inability to distinguish between a primary beam and a grating lobe can lead to critical miscalculations in navigation and collision avoidance.

A Novel Tri-Geometry Antenna Architecture

To resolve this seemingly paradoxical impasse between dense antenna spacing and low optical interference, the MIT team abandoned the traditional paradigm of uniform antenna design. In a conventional optical phased array, every antenna possesses an identical physical structure and corrugation pattern, ensuring that adjacent elements interact strongly and couple their optical modes.

The MIT researchers disrupted this standard approach by engineering a repeating sequence of three distinct antenna geometries within a single array. By systematically varying the physical width of the antennas as well as the depth, spacing, and dimensions of their surface corrugations, the team created a periodic lattice of elements with distinct propagation coefficients. The propagation coefficient mathematically defines how an optical wave travels through a specific waveguide structure. Because adjacent antennas possess radically different propagation coefficients, they are effectively invisible to one another at an optical level.

"Because the antennas have very different propagation coefficients, when we put them close together, essentially each antenna doesn’t ‘see’ the antenna next to it. Therefore, it won’t couple with its neighbor," explained Andres Garcia Coleto, an EECS graduate student and co-author of the study.

Despite this geometric variation, the team faced a secondary, highly complex design requirement: all three antenna types had to produce identical emission characteristics. Maintaining distinct physical structures while forcing them to emit precisely the same volume of light at identical angles under the same input wavelengths required rigorous mathematical modeling. Lead author and EECS graduate student Henry Crawford-Eng noted the difficulty of the task, explaining that while engineering divergent geometries is feasible, dissimilar structures naturally tend to behave differently under optical excitation.

To conquer this challenge, the researchers first formulated a comprehensive electromagnetic framework describing radiative mode coupling in tightly spaced photonic arrays. Using this theoretical model, they simulated, optimized, and subsequently manufactured an integrated optical phased array featuring the reduced-crosstalk tri-geometry antenna configuration.

Experimental Validation and Performance Metrics

Following fabrication within advanced semiconductor cleanroom facilities—including specialized processing supported by MIT.nano—the experimental chip underwent rigorous empirical evaluation. The results demonstrated a dramatic reduction in unwanted optical phenomena.

Under standard operating conditions, a conventional optical phased array with identical antenna spacing would experience optical coupling rates approaching 100 percent, leading to severe signal degradation and severe grating lobe proliferation. The MIT tri-geometry design reduced this inter-antenna coupling to approximately 1 percent.

Furthermore, the fabricated device successfully steered a clean, high-precision laser beam across a wide angular field of view without generating spurious grating lobes or excessive background noise. The combination of wide-angle scanning capability, exceptionally low crosstalk, and high beam purity marks a foundational milestone in the development of chip-scale solid-state optics.

The research paper, published in Nature Communications, was authored by a team from MIT’s Research Laboratory of Electronics (RLE) and the Department of Electrical Engineering and Computer Science (EECS). The study was led by senior author Jelena Notaros, the Robert J. Shillman Career Development Associate Professor of EECS, alongside lead author Henry Crawford-Eng and co-authors Andres Garcia Coleto, Benjamin M. Mazur, Daniel M. DeSantis, and Tal Sneh.

Expert Analysis and Industry Implications

The academic and industrial communities have taken immediate notice of the breakthrough, viewing it as a critical enabler for commercial-grade solid-state lidar. Joyce Poon, a professor of electrical and computer engineering at the University of Toronto and director of the Max Planck Institute of Microstructure Physics, who was independent of the research, praised the elegance of the solution.

"This work addresses a longstanding challenge in integrated optical phased arrays: simultaneously achieving both a wide field of view, which requires dense antenna spacing, and high beam quality, which requires low crosstalk between neighboring antennas," Poon observed. "The authors solve this problem with an elegant antenna design. Their innovation is an important step forward for chip-scale, solid-state beam-steering technology."

The implications of this research extend far beyond the automotive sector. While autonomous vehicle deployment remains a primary market driver—demanding rugged sensors capable of operating reliably through vibrations, extreme weather, and millions of operational cycles—the technology holds substantial promise for other industries. Aerial mapping platforms, unmanned aerial vehicles (UAVs), industrial robotics, and structural health monitoring for civil infrastructure all require high-resolution spatial awareness that can be integrated seamlessly into compact form factors.

By leveraging standard semiconductor manufacturing processes (silicon photonics), future iterations of these lidar chips could potentially be produced at large scale and low cost, mirroring the manufacturing economics of microprocessors and memory chips. This scalability stands in sharp contrast to current high-end mechanical lidar units, which often require meticulous manual assembly and alignment.

Future Research Directions and Next Steps

With the foundational theory and initial experimental proof-of-concept successfully established, the MIT research team is already looking toward subsequent phases of development. The group plans to refine the underlying optical architecture to further expand the angular viewing range, pushing the boundaries of chip-scale beam steering even closer to the performance thresholds of mechanical counterparts. Additionally, the team is actively investigating alternative design paradigms that emerged organically during the theoretical development phase of the current project.

Financial and institutional support for the research was provided by a coalition of public and private entities, including the Semiconductor Research Corporation, the National Science Foundation, an MIT MathWorks Fellowship, the U.S. Department of War, and the MIT Rolf G. Locher Endowed Fellowship. As funding and academic inquiry continue to push solid-state photonics forward, the transition from mechanical scanning systems to robust, semiconductor-based optical sensing moves steadily closer to commercial reality.
