Modernizing Kubernetes Traffic Management with Gateway API Traefik and OAuth2 Proxy for Secure Authentication
The evolution of Kubernetes networking has reached a critical juncture as the community shifts away from legacy ingress-nginx annotations in favor of the standardized Gateway API. This transition marks a significant milestone in cloud-native infrastructure, prioritizing a more robust, vendor-neutral approach to traffic management. For organizations managing internal services that require stringent access controls, the integration of Traefik, OAuth2 Proxy, and an OIDC provider like Pocket ID represents a state-of-the-art solution for modernizing authentication workflows. As Kubernetes environments grow in complexity, moving toward the Gateway API ensures that traffic management remains scalable, manageable, and aligned with industry-standard practices.
The Shift Toward Gateway API Standardization
For years, ingress-nginx served as the primary mechanism for managing traffic into Kubernetes clusters. However, its reliance on custom, platform-specific annotations created a fragmented ecosystem that hindered portability. The Kubernetes Gateway API was introduced to address these inconsistencies, providing a unified set of resources—GatewayClass, Gateway, and HTTPRoute—designed to handle the diverse needs of modern service architectures.
The primary advantage of the Gateway API is its focus on role-oriented design, separating the responsibilities of infrastructure providers from application developers. While the API standardizes the routing of traffic, it does not natively include complex features like OIDC browser-based login or authentication filtering. This creates a reliance on specialized middleware, such as Traefik, to bridge the gap. By leveraging Traefik’s Middleware CRDs, administrators can inject security logic directly into the traffic path, ensuring that authentication is enforced consistently across all services protected by the Gateway.
Chronology of the Authentication Workflow
The authentication process in a modern Kubernetes cluster follows a highly specific sequence designed to ensure security without compromising user experience. When a user attempts to access a protected service, the request is intercepted by the Traefik Gateway, which forwards the request to the OAuth2 Proxy via an authentication endpoint. If the user does not possess a valid session, the proxy returns a 401 Unauthorized status.
In the updated architecture, a critical component is the Errors middleware. Upon receiving the 401 status, this middleware intercepts the response and performs a 302 redirect, sending the user to the OAuth2 Proxy sign-in page. The user is then redirected to an OIDC provider—such as Pocket ID—where they authenticate using modern credentials, including passkeys. Once the OIDC provider validates the user, it redirects them back to the OAuth2 Proxy, which sets a secure, scoped session cookie. The browser then repeats the original request, which is now authenticated, allowing Traefik to pass the request to the backend service along with necessary identity headers.
Supporting Infrastructure and Technical Requirements
Implementing this architecture requires a foundational understanding of both Kubernetes and modern security standards. Before deployment, administrators must ensure a functional cluster equipped with Helm, kubectl, and a reliable DNS resolution mechanism for wildcard subdomains. The security of the setup is heavily dependent on the use of HTTPS; therefore, integrating a tool like cert-manager to manage TLS certificates is mandatory.
The deployment process follows a systematic path:
- Gateway API Installation: Standard CRDs must be applied to the cluster to enable the Gateway API functionality. This serves as the foundation for all subsequent routing rules.
- Gateway Provisioning: Traefik must be installed with the appropriate providers enabled to handle both the Gateway API resources and the custom Traefik middleware.

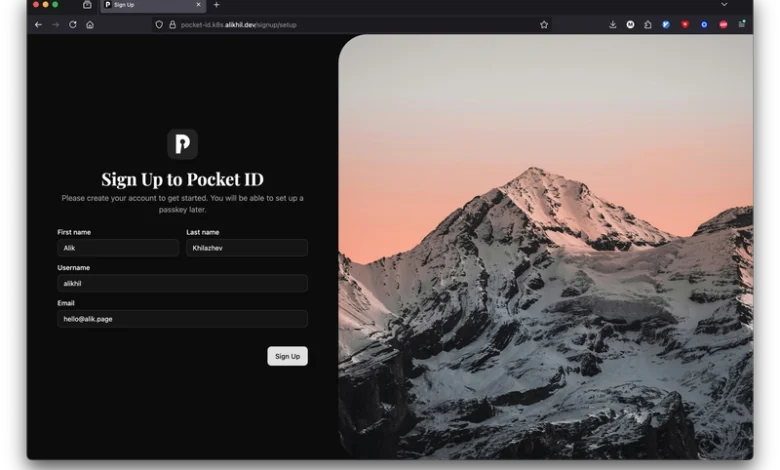

- Identity Management: Implementing an OIDC provider like Pocket ID provides a secure way to manage user identities. By utilizing passkeys, organizations can significantly reduce the risk of credential theft compared to traditional password-based systems.
- Proxy Configuration: OAuth2 Proxy acts as the gatekeeper, verifying tokens and managing session states. It must be configured with a robust cookie secret and clear definitions of allowed groups to prevent unauthorized access.
- Middleware Attachment: Finally, the ForwardAuth and Errors middlewares must be attached to the target service’s HTTPRoute. This ensures that the authentication handshake occurs seamlessly before any traffic reaches the application.
Industry Implications and Security Analysis
The move toward this architecture has profound implications for cybersecurity within cloud-native environments. By offloading authentication to a dedicated proxy and leveraging centralized OIDC providers, organizations can implement a "Zero Trust" approach to internal service security. This ensures that even services residing behind a firewall require verified credentials, reducing the blast radius of potential internal network breaches.
Furthermore, the transition to the Gateway API standard enhances long-term maintainability. In the legacy ingress-nginx model, migrating services often required rewriting complex annotations. With the Gateway API, the infrastructure configuration remains relatively consistent, even if the underlying ingress controller—such as Traefik, Envoy Gateway, or Cilium—needs to be replaced. This decoupling of intent from implementation is a cornerstone of cloud-native resilience.
Challenges and Best Practices
While the benefits are significant, the implementation is not without challenges. The primary hurdle remains the configuration of middleware, which must be precisely ordered to ensure that the redirect loop functions correctly. If the ForwardAuth and Errors middlewares are not ordered correctly, users may experience infinite redirect loops or outright service denial.
Security experts emphasize the importance of scoping cookies appropriately. Using a wide parent domain for session cookies can expose unrelated applications to session hijacking risks. Best practices dictate that cookies should be scoped as narrowly as possible, typically to the specific subdomain of the protected service. Additionally, maintaining a clear separation between the OIDC client secrets and the application code is vital; using Kubernetes Secrets or dedicated secret management tools like HashiCorp Vault is recommended to prevent sensitive data exposure.
Looking Ahead
As the ecosystem matures, the integration of Gateway API with authentication proxies is expected to become the industry standard. Future developments will likely focus on automating the generation of these configurations, further reducing the manual effort required by DevOps teams. Organizations currently relying on ingress-nginx are encouraged to begin the migration process incrementally. By testing the flow with a single service, teams can gain confidence in the new architecture before transitioning their production workloads.
The transition to Gateway API is not merely a technical update; it is a fundamental shift toward a more secure, standard-compliant future for Kubernetes. By adopting these tools and methodologies, enterprises can build robust internal service landscapes that are both highly secure and prepared for the demands of modern application delivery. As the industry continues to converge on the Gateway API standard, the ability to effectively implement and manage these authentication workflows will become an essential skill for all Kubernetes administrators.
